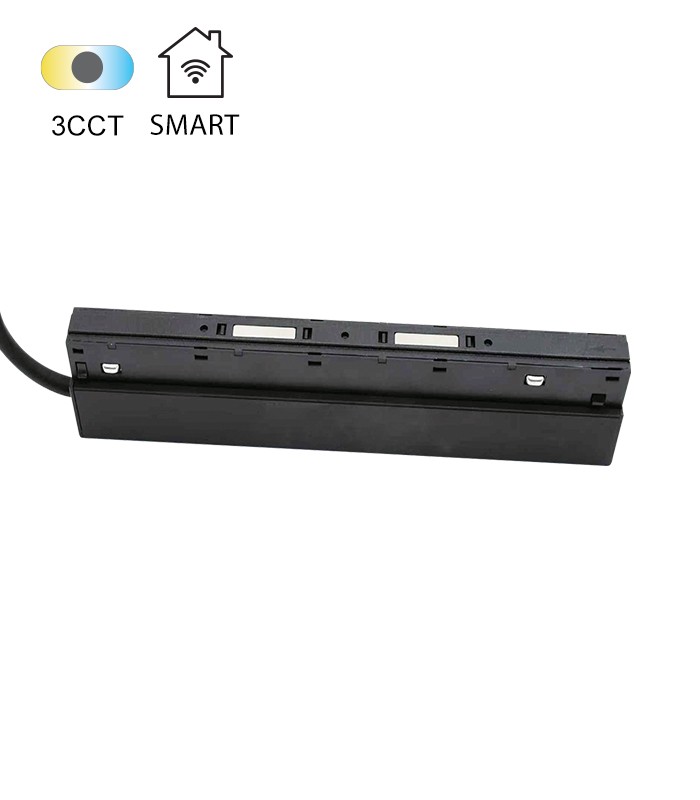

SMART POWER SUPPLY FOR MAGNA MAGNA-PSMART 48VDC 200W IP20 TUYA BLUETOOTH 9910822 VITO
Product Code:
9910822
MAGNA-PSMART is a smart power supply model compatible to 3CCT Magna series spots. There are two connection methods: Connect via Bluetooth for more stable connection. And connect via Wi-Fi 2.4G network with these steps : Select the Wi-Fi network and enter the password. The smart device and the smart power supply must be connected to the same Wi-Fi network. After pairing, you can use a mobile device to dim the lights, change the CCT, and switch the paired fixtures ON/OFF then.
New product
| POWER (W) | 200 |
| POWER FACTOR | 0.9 |
| DIMENSIONS (mm) | 265x22x44 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| SWITCH ON/OFF | 25000 |
| LIFETIME (H) | 25000 |
| DIMMABLE | Yes |
| OPERATION VOLTAGE (V) | 165-265V AC~ 50/60Hz |
| ELECTRICAL PROTECTION | Class I |
| BODY MATERIAL | Aluminum |
| BODY COLOR | BLACK |
| TEMPERATURE (Ta) | -20°Cta+50°C |
| GUARANTEE PERIOD (y) | 2 |
| PCS PER BOX | 30 |
| PRODUCT DEPTH (mm) | 265 |
| OUTBOX GROSS WEIGHT (Kg) | 10.6 |
| OUTBOX LENGHT (mm) | 360 |
| OUTBOX WIDHT (mm) | 300 |
| OUTBOX HEIGHT (mm) | 200 |
| OUTBOX VOLUME (m^3) | 0.0216 |
| UNIT GROSS WEIGHT (g)2 | 353.33 |
| EAN-13(Inbox) | 6977231355800 |
