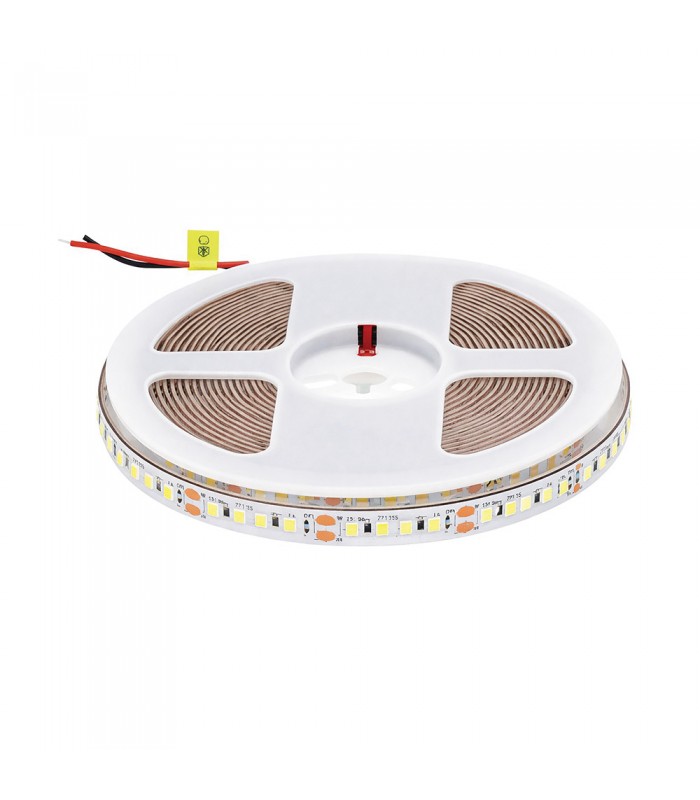

HIGH LUMEN LED STRIP LEDStrip+ 24V 72x2835 6W/m Cut Size cm 6000K 1020Lm/m 3M Tape 8mm IP20 5m/roll 5541170 VITO
Product Code:
5541170
STRIPLED PLUS HIGH LUMEN is an advanced double PCB Flexible LED strips, available with monochromatic color temperatures; warm/neutral/cool white, non waterproof (IP20). Power supply cable at both sides of the roll, Voltage loss after 5m is no more than 5% and after 10m is no more than 7%. 3M adhesive tape is used for better bonding results with surfaces. Sectionable every 55.5mm or multiple of this.
New product
| CCT (KELVIN) | 6000K (COOL WHITE) |
| POWER (W) | 6W/m |
| LUMINUS EFFICIENCY | 170 |
| LIGHT BEAM ANGLE | 120° |
| CRI | 80 |
| DIMENSIONS (mm) | 8x5000 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| LIFETIME (H) | 25000 |
| DIMMABLE | Yes |
| OPERATION VOLTAGE (V) | 24V DC |
| ELECTRICAL EFFICIENCY INDEX (EEI) | B |
| ELECTRICAL PROTECTION | Class III |
| BODY MATERIAL | Plastic + Copper |
| TEMPERATURE (Ta) | -25°Cta+45°C |
| GUARANTEE PERIOD (y) | 5 |
| THICKNESS OF LED STRIP (mm) | 1 |
| WIDTH OF LED STRIP (mm) | 8 |
| LED STRIP ROLL (m) | 5 |
| PCS PER BOX | 50 |
| PRODUCT HEIGHT (mm) | 1 |
| PRODUCT WIDTH (mm) | 8 |
| PRODUCT DEPTH (mm) | 5000 |
| SWITCH ON OFF | 25000 |
| CHIP SIZE | 2835 |
| OUTBOX GROSS WEIGHT (Kg) | 4.5 |
| OUTBOX VOLUME (m^3) | 0.018 |
| UNIT GROSS WEIGHT (g)2 | 90.0 |
| CHIPS m | 72 |
| LUMINOUS FLUX () | 1020 |
| OUTBOX LENGTH (mm) | 390 |
| OUTBOX WIDTH (mm) | 295 |
| UNIT2 | mm |
| OUTBOX HEOGHT Outbox (mm) | 155 |
