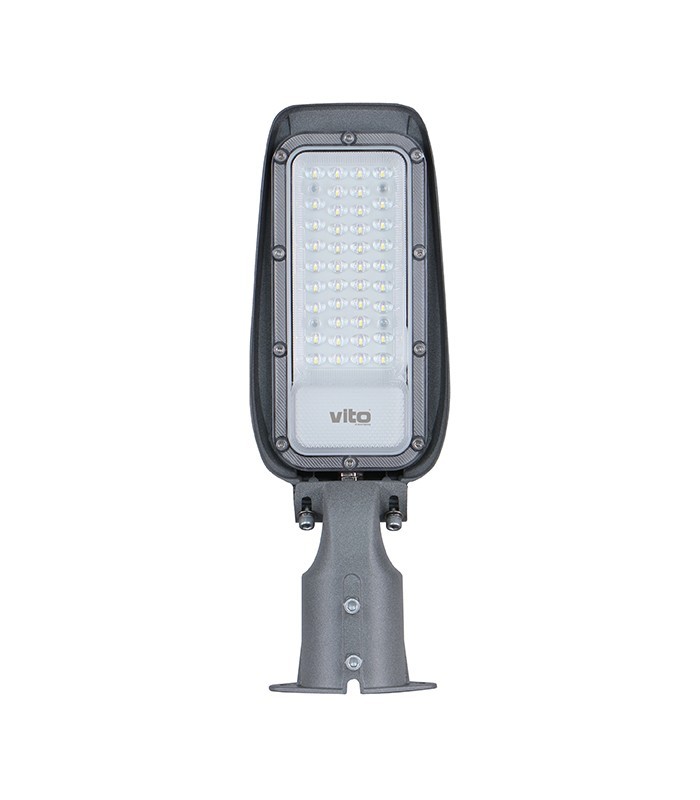

LED STREET LAMP TIGER 30W 6500K 3600lm 70°x135° IP65 IK08 4kV BLACK 3104410 VITO

Product Code: 3104410
he TIGER series is an advanced family of LED street-light luminaires designed for high performance and installation flexibility, featuring an adjustable tilt angle ranging from 0 degrees to 150 degrees. Each luminaire is equipped with high-efficiency LUMILEDS LED modules and is compatible with mounting arms up to Φ60 mm internal diameter. The TIGER range is available in three power models—30W, 50W and 100W—offered in both 4000K & 6500K color temperatures, allowing professionals to select the ideal configuration for various urban, industrial or roadway lighting needs. Designed for long-lasting performance, the luminaires come with a 3-year guarantee period, reflecting the product’s quality and reliability. Constructed from robust die-cast aluminum and finished with an electrostatic coating in elegant Anthracite (RAL 7024), the housing ensures durability and long-term resistance to environmental conditions. The optical system incorporates a polycarbonate diffuser with anti-UV treatment, providing stable light output and protection against degradation. A constant-current, waterproof LED driver and an integrated 4 kV surge protection device ensure reliable operation, while a 3×0.75 mm²
New product

Technical Specs
CCT (KELVIN) 6500K (COOL WHITE)
POWER (W) 30
LUMINUS EFFICIENCY 120
LIGHT BEAM ANGLE 70°x135°
CRI 70
POWER FACTOR 0.9
DIMENSIONS (mm) 364x152x77
FLICKER No
IP PROTECTION CLASS IP65
SWITCH ON/OFF 30000
LIFETIME (H) 30000
DIMMABLE No
OPERATION VOLTAGE (V) 220-240V AC ~ 50/60Hz
ELECTRICAL EFFICIENCY INDEX (EEI) D
ELECTRICAL PROTECTION Class I
BODY MATERIAL Aluminum
BODY COLOR RAL 7024
TEMPERATURE (Ta) -20°Cta+60°C
GUARANTEE PERIOD (y) 3
LUMINOUS FLUX (Lm) 3600
PCS PER BOX 20
PRODUCT DEPTH (mm) 77
SWITCH ON OFF 30000
OUTBOX GROSS WEIGHT (Kg) 13.73
OUTBOX LENGHT (mm) 610
OUTBOX WIDHT (mm) 310
OUTBOX HEIGHT (mm) 395
OUTBOX VOLUME (m^3) 0.0747
UNIT GROSS WEIGHT (g)2 686.5
IK PROTECTION CLASS IK08
EAN-13(Inbox) 6977231353912
