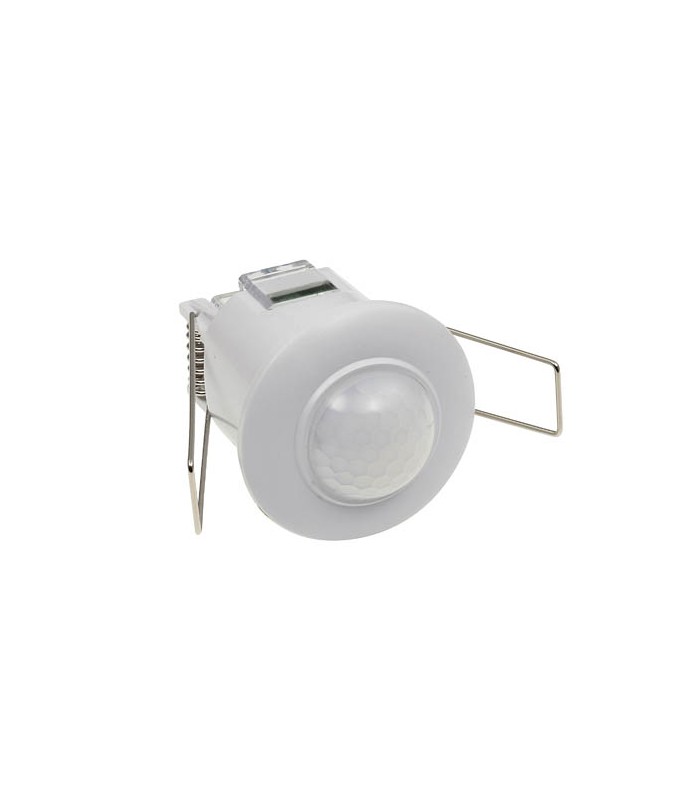

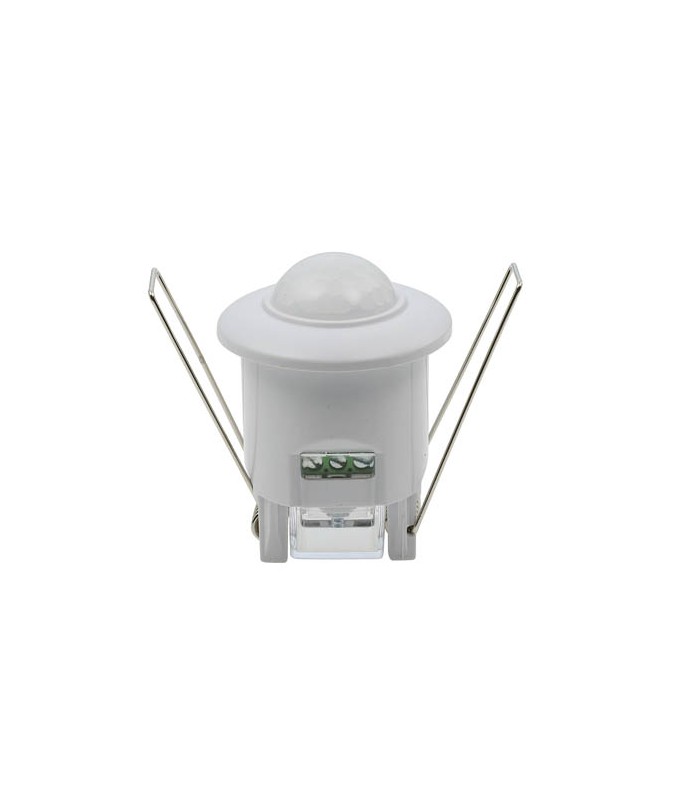

IR MOTION SENSOR RECESSED MOUNTED WHITE 800W MS04 6110070 VITO
Family: MS
Product Code:
6110070
MS04 PIR sensors
- Detection Angle: 360°.
- Maximum Detection Range:<6m (24°C).
- Motion detection speed:0,6~1,5m/s.
- Height of Installation: 2,2-4m.
- Ambient Light: 3~2000lux.
- Time Delay: 10sec-2min.
New product
| POWER (W) | Max 800 |
| IP PROTECTION CLASS | IP20 |
| LIGHT SENSITIVITY (lx) | 3-2000 |
| OPERATION VOLTAGE (V) | 220V-50/60Hz |
| ELECTRICAL PROTECTION | Class II |
| BODY MATERIAL | Polycarbonate (UV Proof) |
| BODY COLOR | WHITE |
| TEMPERATURE (Ta) | -20°CTa50°C |
| GUARANTEE PERIOD (y) | 5 |
| SENSOR TYPE | IR |
| DETECTION ANGLE OF SENSOR | 360° |
| DETECTION DISTANCE OF SENSOR (m) | 6 |
| TIME DELAY OF SENSOR (s) | min10s-max15m |
| INSTALLATION HEIGHT OF SENSOR (m) | 2,2-4 |
| CUT SIZE DIMENSIONS (mm) | 40 |
| PCS PER BOX | 100 |
| DIMENSIONS (mm) | 66,5x50x52mm |
| PRODUCT HEIGHT (mm) | 50 |
| PRODUCT WIDTH (mm) | 66 |
| PRODUCT DEPTH (mm) | 52 |
| UNIT GROSS WEIGHT (g) | 85.00 |
| EAN-13 (Inbox Barcode) | 8680168582703 |
