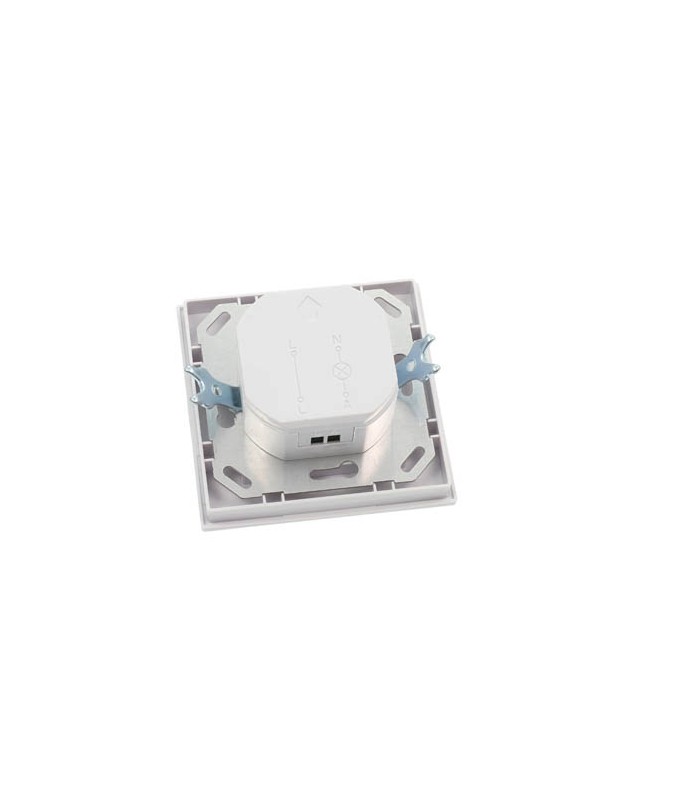

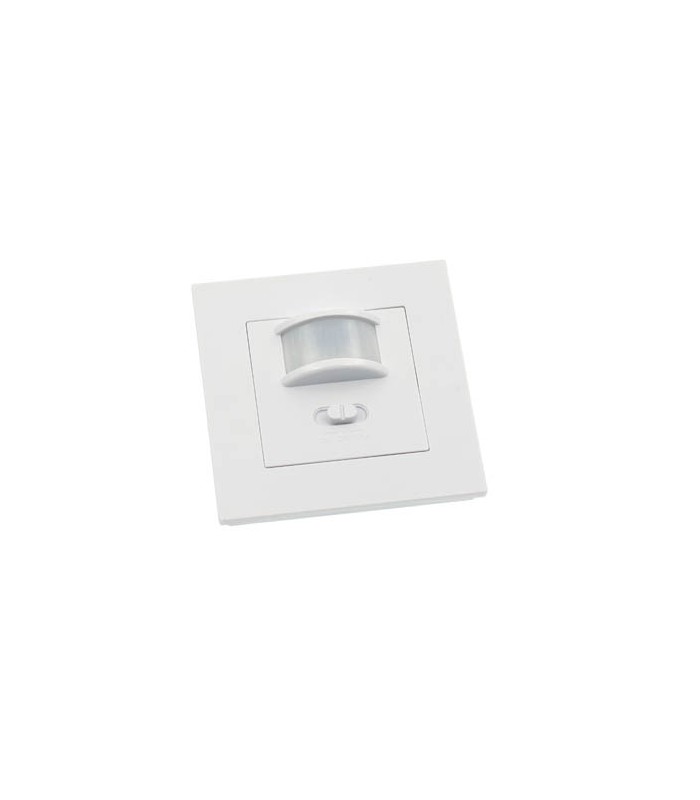

IR MOTION SENSOR RECESSED MOUNTED WHITE 500W MS08 6110120 VITO
Family: MS
Product Code:
6110120
MS08 PIR sensor
- Detection Angle: 160°.
- Maximum Detection Range:<9m (24°C).
- Motion detection speed:0,6~1,5m/s.
- Ambient Light: 10~2000lux.
- Time Delay: 10sec-420sec.
New product
| POWER (W) | Max 500 |
| IP PROTECTION CLASS | IP20 |
| SWITCH ON/OFF | 100000 |
| LIFETIME (H) | 50000 |
| LIGHT SENSITIVITY (lx) | 3-2000 |
| OPERATION VOLTAGE (V) | 220V-50/60Hz |
| ELECTRICAL PROTECTION | Class II |
| BODY MATERIAL | Polycarbonate (UV Proof) |
| BODY COLOR | WHITE |
| TEMPERATURE (Ta) | -20°CTa50°C |
| GUARANTEE PERIOD (y) | 3 |
| SENSOR TYPE | IR |
| DETECTION ANGLE OF SENSOR | 160° |
| DETECTION DISTANCE OF SENSOR (m) | 9 |
| TIME DELAY OF SENSOR (s) | min10s-max7m |
| INSTALLATION HEIGHT OF SENSOR (m) | 2-4 |
| PCS PER BOX | 100 |
| DIMENSIONS (mm) | 83x83x43mm |
| PRODUCT HEIGHT (mm) | 83 |
| PRODUCT WIDTH (mm) | 83 |
| PRODUCT DEPTH (mm) | 43 |
| UNIT GROSS WEIGHT (g) | 100.00 |
| EAN-13 (Inbox Barcode) | 6972538043153 |
