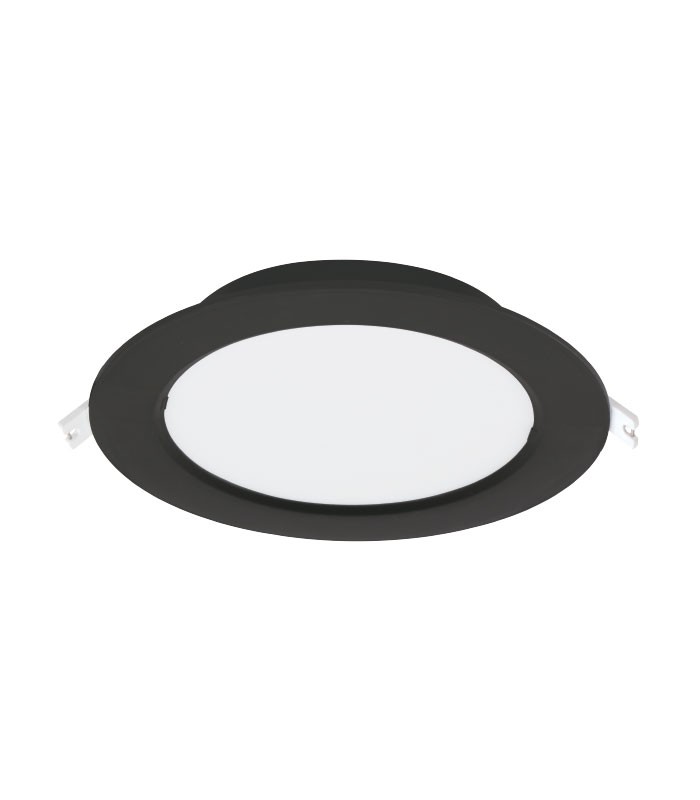

LINA-R 12W 4000K Φ155 BLACK ROUND RECESSED LED PANEL 2027201 VITO
Product Code:
2027201
LINA-R is an advanced family of round recessed LED light fixtures, equipped with high-efficiency LED sources in a backlight configuration, ensuring uniform illumination and visual comfort. The fixture features a PP housing, finished in sand white. An opal polystyrene diffuser with anti-yellow treatment provides a 120 degrees beam angle and maintains low glare performance with UGR less than 19. A DOB (Driver on Board) solution is included, enabling compact design and reliable operation. Designed for general interior lighting in residential, commercial and professional environments.
New product
| CCT (KELVIN) | 4000K (NATURAL WHITE) |
| POWER (W) | 12 |
| LUMINUS EFFICIENCY | 110 |
| LIGHT BEAM ANGLE | 120° |
| CRI | 85 |
| POWER FACTOR | 0.6 |
| DIMENSIONS (mm) | 170.8x28.4x170.8 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| SWITCH ON/OFF | 30000 |
| LIFETIME (H) | 30000 |
| DIMMABLE | No |
| OPERATION VOLTAGE (V) | 220-240VAC 50 60Hz |
| ELECTRICAL EFFICIENCY INDEX (EEI) | E |
| ELECTRICAL PROTECTION | Class II |
| BODY MATERIAL | Aluminum |
| DIFFUSER MATERIAL | PP |
| BODY COLOR | BLACK |
| TEMPERATURE (Ta) | -20℃~+40℃ |
| CUT SIZE DIMENSIONS (mm) | 155 |
| LUMINOUS FLUX (Lm) | 1320 |
| PCS PER BOX | 60 |
| OUTBOX LENGHT (mm) | 550 |
| OUTBOX WIDHT (mm) | 425 |
| OUTBOX HEIGHT (mm) | 375 |
| OUTBOX VOLUME (m^3) | 0.0877 |
| UNIT GROSS WEIGHT (g)2 | 160 |
| EAN-13(Inbox) | 6972538049926 |
