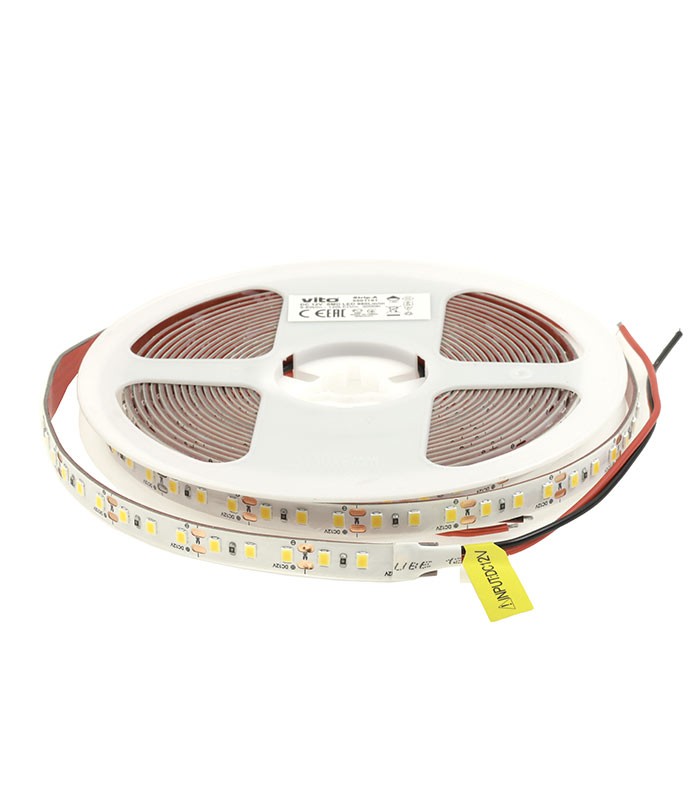

LED STRIP PLUS 2835 120CHIPS/m 9,6W/m 980Lm 3000K (WARM WHITE) 24V DC IP65 5m ROLL 3M(ADHESIVE TAPE) 5540760 VITO
Family: LED STRIP PLUS
Product Code:
5540760
STRIPLED PLUS is an advanced double PCB Flexible LED strips (SMD 2835, 120 LED/m), available with monochromatic color temperature, warm white, waterproof (IP65) with silicone spray. Total length of the roll is 5m. Power supply cable at each side, Voltage loss after 5m is no more than 5-8%. 3M adhesive tape is used for better bonding results with surfaces . Sectionable every 50mm or multiple of this size.
New product
| CCT (KELVIN) | 3000K (WARM WHITE) |
| POWER (W) | 9,6W/m |
| LUMINUS EFFICIENCY | 102 |
| LIGHT BEAM ANGLE | 120° |
| CRI | 80 |
| IP PROTECTION CLASS | IP65 |
| SWITCH ON/OFF | 30000 |
| LIFETIME (H) | 25000 |
| OPERATION VOLTAGE (V) | 24V DC |
| ELECTRICAL EFFICIENCY INDEX (EEI) | E |
| ELECTRICAL PROTECTION | Class III |
| BODY MATERIAL | Copper+Plastic |
| BODY COLOR | WHITE |
| TEMPERATURE (Ta) | -20℃~+40℃ |
| GUARANTEE PERIOD (y) | 3 |
| CHIPS/m | 120 |
| LUMINUS FLUX (Lm) | 980 |
| PCS PER BOX | 50 |
| DIMENSIONS (mm) | 8*1*5000 |
| PRODUCT HEIGHT (mm) | 1 |
| PRODUCT WIDTH (mm) | 8 |
| PRODUCT DEPTH (mm) | 5000 |
| CHIP SIZE | 2835 |
| UNIT GROSS WEIGHT (g) | 0.10 |
| EAN-13 (Inbox Barcode) | 6970233835240 |
