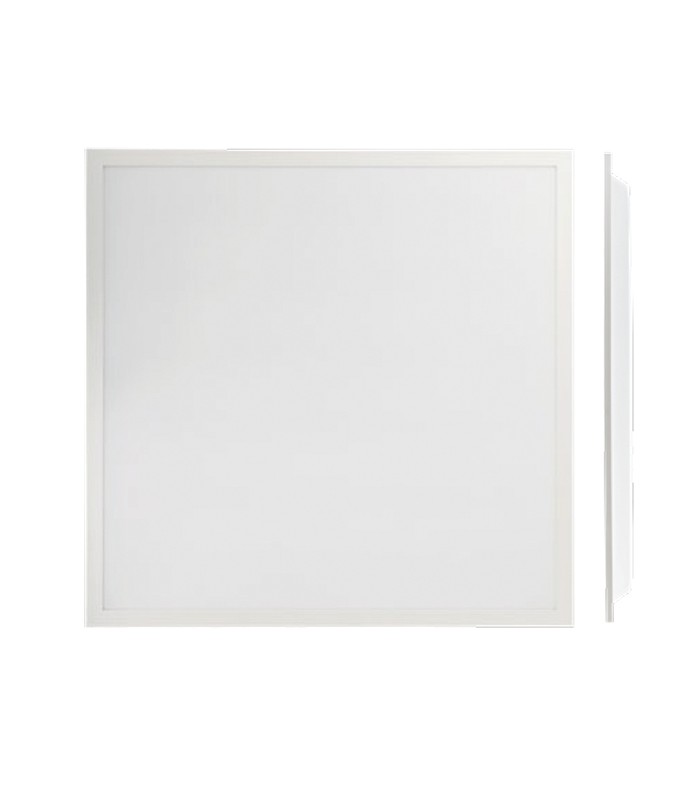

BACKLIGHTED LED PANEL VENUS-BC 36W 4000K 4320LM 595X595X35MM WHITE 10PCS/CTN BULK-PACK 2430420 VITO
Product Code:
2430420
VENUS BC is a family of panel LED light fixtures equiped with LED chips in the backlight position. VITO brand driver is included on the fixture. It is for in grid ceiling installation, can be installed on the surface of the ceiling with the frame PANELFIX-S which has to be ordered seperately with code 9901212. Housing of aluminum board electrostatically painted with sandblasted finishing in sand white. Diffuser of opal polystyrene with anti-yellow treatment with 160 degree beam angle.
New product
| CCT (KELVIN) | 4000K (NATURAL WHITE) |
| POWER (W) | 36 |
| LUMINUS EFFICIENCY | 120 |
| LIGHT BEAM ANGLE | 160° |
| CRI | 80 |
| POWER FACTOR | 0.9 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| LIFETIME (H) | 30000 |
| DIMMABLE | No |
| OPERATION VOLTAGE (V) | 220-240V AC ~ 50/60Hz |
| ELECTRICAL EFFICIENCY INDEX (EEI) | E |
| ELECTRICAL PROTECTION | Class II |
| TEMPERATURE (Ta) | -25°Cta+45°C |
| GUARANTEE PERIOD (y) | 2 |
| CUT SIZE DIMENSIONS (mm) | 580*580 |
| LUMINOUS FLUX (Lm) | 4320 |
| PCS PER BOX | 10 |
| Product Width (mm) | 595 |
| Product Height (mm) | 35 |
| DIMENSIONS (mm) | 595x595x35 |
| PRODUCT DEPTH (mm) | 595 |
| OUTBOX GROSS WEIGHT (Kg) | 8,2 |
| Outbox Length (mm) | 640 |
| Outbox Width (mm) | 355 |
| Outbox Height (mm) | 640 |
| Outbox Volume (m^3) | 0.1454 |
| UNIT GROSS WEIGHT (g)2 | 0.0 |
| UGR | 22 |
| EAN-13(Inbox) | 6977231353646 |
