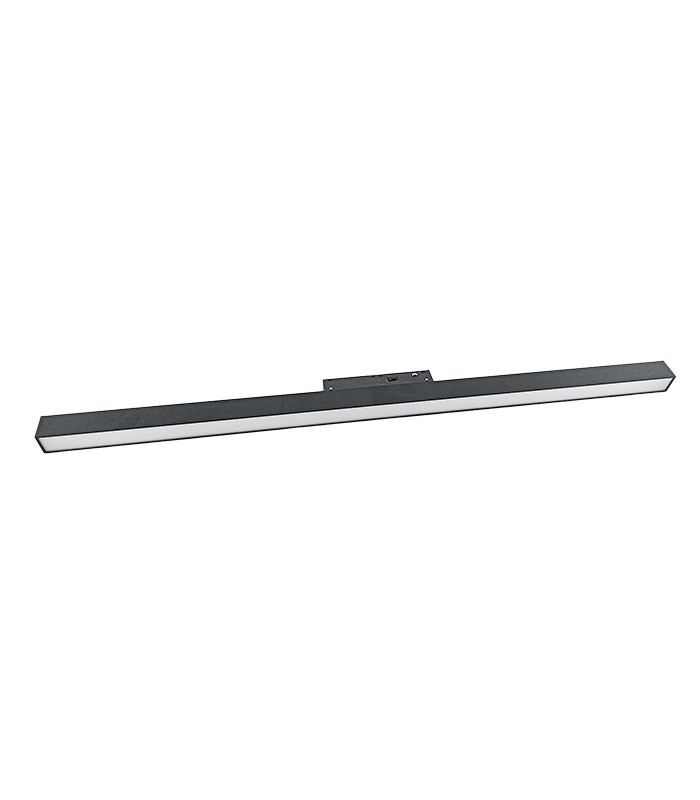

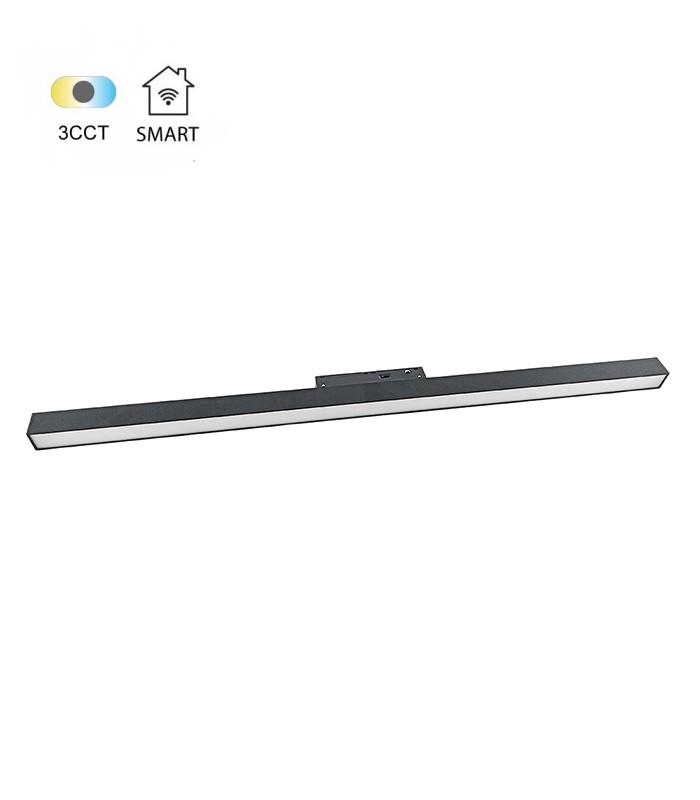

MAGNETIC LED TRACK LAMP MAGNA-H S4 20W 3CCT (3000K/4000K/6000K) 1600Lm 120° 60CM 48V 2102033 VITO
Product Code:
2102033
MAGNA HS4 is a linear LED magnetic track lights family with 3CCT function. The solutions subject of proposal vary in terms of form and type of installation, with one common denominator: the quality of our products. It can be operate on the magnetic 2 lines track rails of S20, Recessed, Surface & Suspended systems. They are equiped with microprismatic diffuser with 120 degree and UGR<19. Housing of aluminum board electrostatically painted with sandblasted finishing in sand black. Direct replacement for conventional halogen track lights. Including track lighting adaptor. No flicker for eye protection.
New product
| CCT (KELVIN) | 3CCT (3000K/4000K/6000K) |
| POWER (W) | 20 |
| LUMINUS EFFICIENCY | 80 |
| LIGHT BEAM ANGLE | 120° |
| Luminous Flux (lm) | 1600 |
| CRI | 90 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| LIFETIME (H) | 25000 |
| DIMMABLE | Yes |
| OPERATION VOLTAGE (V) | 48V DC |
| ELECTRICAL EFFICIENCY INDEX (EEI) | F |
| ELECTRICAL PROTECTION | Class III |
| BODY MATERIAL | Aluminum |
| TEMPERATURE (Ta) | -20°CTa+40°C |
| GUARANTEE PERIOD (y) | 3 |
| PCS PER BOX | 30 |
| Product Width (mm) | 22 |
| Product Height (mm) | 25 |
| DIMENSIONS (mm) | 600x22x25 |
| PRODUCT DEPTH (mm) | 600 |
| SWITCH ON OFF | 25000 |
| OUTBOX GROSS WEIGHT (Kg) | 10.81 |
| Outbox Length (mm) | 620 |
| Outbox Width (mm) | 300 |
| Outbox Height (mm) | 195 |
| Outbox Volume (m^3) | 0.0363 |
| UNIT GROSS WEIGHT (g)2 | 360.3 |
| EAN-13(Inbox) | 6977231354643 |
