MAGNETIC LED TRACK LAMP MAGNA-H S1 12W 3CCT (3000K/4000K/6000K) 1140Lm 15° 5x12CM 48V 2102133 VITO
Product Code:
2102133

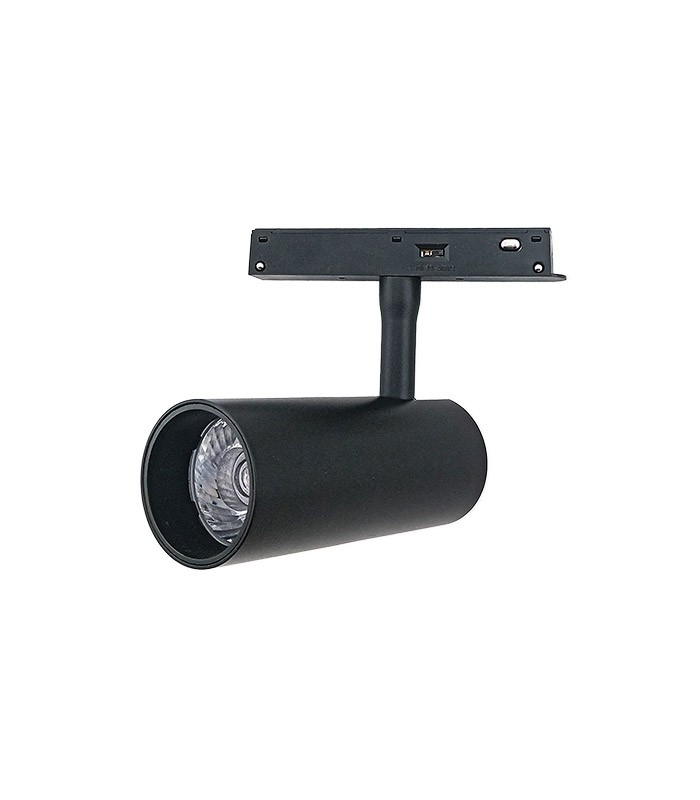

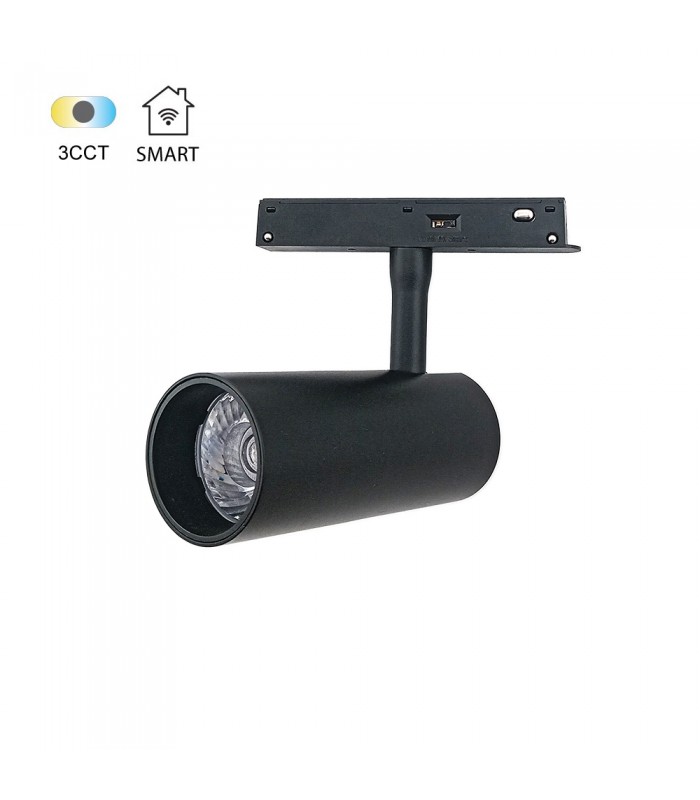

MAGNA HS1 is a magnetic rotatable LED spot track lights family with 3CCT function. The solutions subject of proposal vary in terms of form and type of installation, with one common denominator: the quality of our products. It can be operate on the magnetic 2 lines track rails of S20, Recessed, Surface & Suspended systems. They are equiped with microprismatic diffuser with 15 degree and UGR smaller than 19. Housing of aluminum board electrostatically painted with sandblasted finishing in sand black. Direct replacement for conventional halogen track lights. Including track lighting adaptor. No flicker for eye protection.
New product
| CCT (KELVIN) | 3CCT (3000K/4000K/6000K) |
| POWER (W) | 12 |
| LUMINUS EFFICIENCY | 95 |
| LIGHT BEAM ANGLE | 15° |
| Luminous Flux (lm) | 1140 |
| CRI | 90 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| LIFETIME (H) | 25000 |
| DIMMABLE | Yes |
| OPERATION VOLTAGE (V) | 48V DC |
| ELECTRICAL EFFICIENCY INDEX (EEI) | F |
| ELECTRICAL PROTECTION | Class III |
| BODY MATERIAL | Aluminum |
| TEMPERATURE (Ta) | -20°CTa+40°C |
| GUARANTEE PERIOD (y) | 3 |
| PCS PER BOX | 50 |
| Product Width (mm) | 50 |
| Product Height (mm) | 50 |
| DIMENSIONS (mm) | Φ50x120 |
| PRODUCT DEPTH (mm) | 120 |
| SWITCH ON OFF | 25000 |
| OUTBOX GROSS WEIGHT (Kg) | 13.86 |
| Outbox Length (mm) | 650 |
| Outbox Width (mm) | 330 |
| Outbox Height (mm) | 305 |
| Outbox Volume (m^3) | 0.0654 |
| UNIT GROSS WEIGHT (g)2 | 277.2 |
| EAN-13(Inbox) | 6977231354650 |
