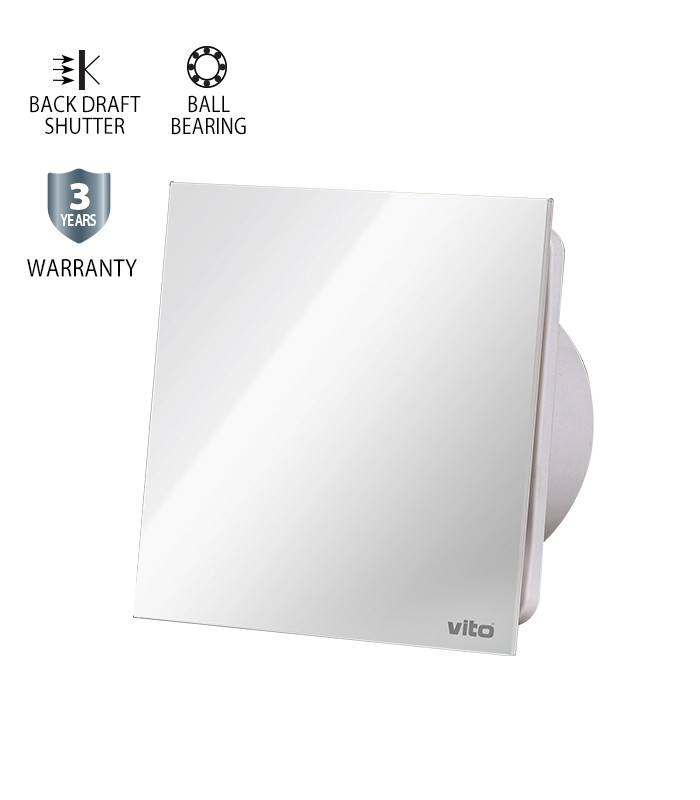

BATHROOM FAN VENTI-GL100 FLAT GLASS Φ100MM 12W WHITE WITH BEARING WITH PLASTIC SHUTTER 8005230 VITO

Product Code: 8005230

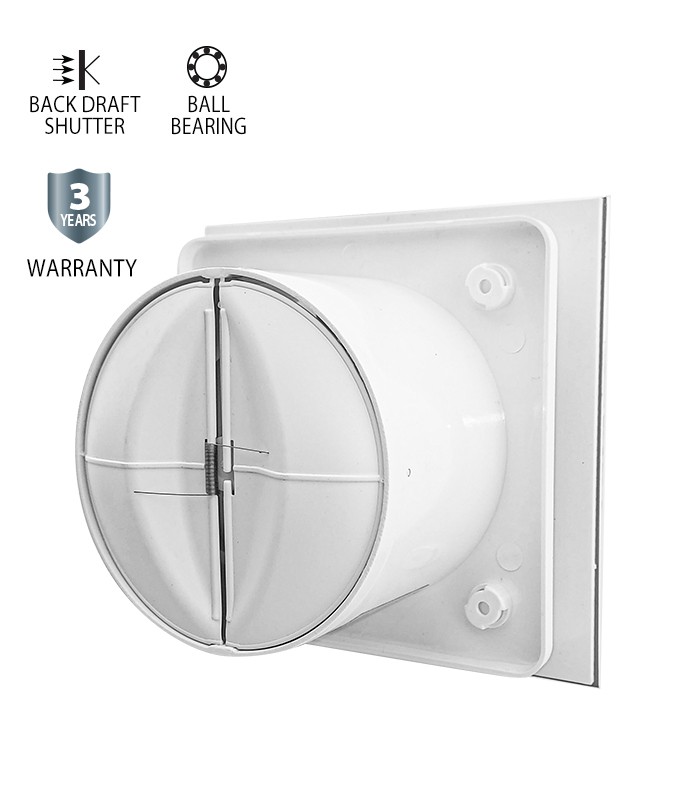

Тhe VENTI-GL bathroom fan is designed to combine high performance with premium aesthetics. Featuring an elegant glass front panel, it adds a modern touch to any bathroom, WC or utility space while ensuring efficient ventilation. The fan is equipped with a durable bearing motor for long life operation and low noise performance, making it suitable for everyday use. A built-in back draft shutter prevents unwanted airflow from returning into the room when the fan is switched off, improving overall comfort and efficiency. Its slim design allows discreet and stylish installation on the wall or ceiling. The VENTI-GL is available in three colors: white, grey and black, all with a glass frontal surface. The white model is available in both Ø100 mm and Ø120 mm versions, while the grey and black models are available in Ø100 mm only, offering flexibility to match different installation needs and interior styles.Exhaust air volume :180m3. Rotational speed:2450rpm. Noise:<30db
New product

Data sheet
POWER (W) 12
POWER FACTOR 1
IP PROTECTION CLASS IPX2
OPERATION VOLTAGE (V) 220-240V ~ 50/60Hz
ELECTRICAL PROTECTION Class II
BODY MATERIAL Glass cover/ABS housing
TEMPERATURE (Ta) -10℃ta+40℃
GUARANTEE PERIOD (y) 3
CUT SIZE DIMENSIONS (mm) Φ102
PCS PER BOX 20
Product Width (mm) 143
Product Height (mm) 143
DIMENSIONS (mm) 143x143x95.6
PRODUCT DEPTH (mm) 95.6
OUTBOX GROSS WEIGHT (Kg) 12.5
Outbox Length (mm) 555
Outbox Width (mm) 340
Outbox Height (mm) 345
Outbox Volume (m^3) 0.0651015
UNIT GROSS WEIGHT (g)2 625.0
EAN-13(Inbox) 6977231354827
