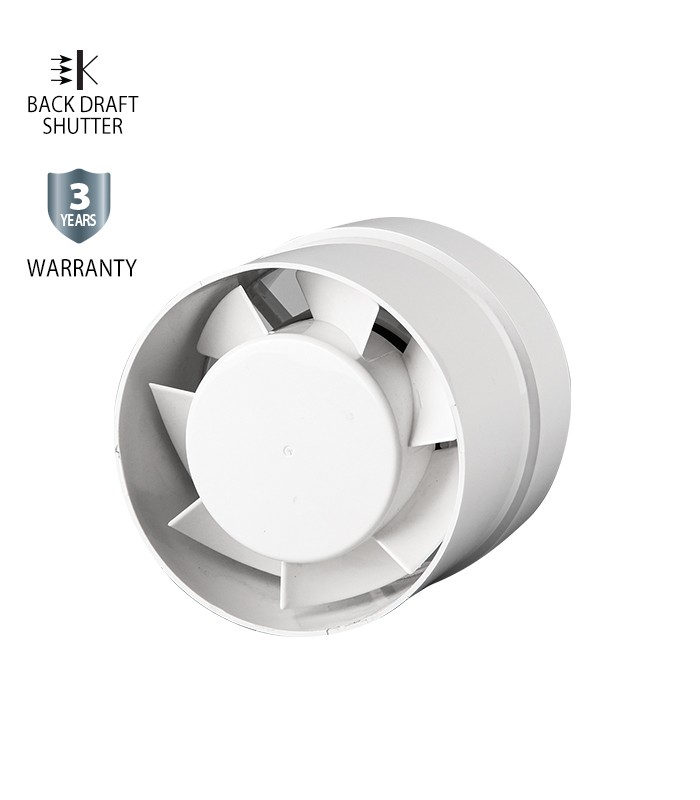

AIR VENTILATION VENTI-P120 PIPE Φ120MM 15W WHITE WITH PLASTIC SHUTTER 8005310 VITO
Product Code:
8005310
VENTI P100 and P120 Series duct fans are designed for integration into ventilation systems in residential, commercial, and office spaces. The models are available in 100 mm and 120 mm diameters, allowing easy adaptation to specific duct sizes.
They are characterized by reliable operation and strong technical performance, providing airflow capacities of 180 m³/h and 220 m³/h, respectively.
VENTI P120 Model Specifications:
Diameter: 120 mm

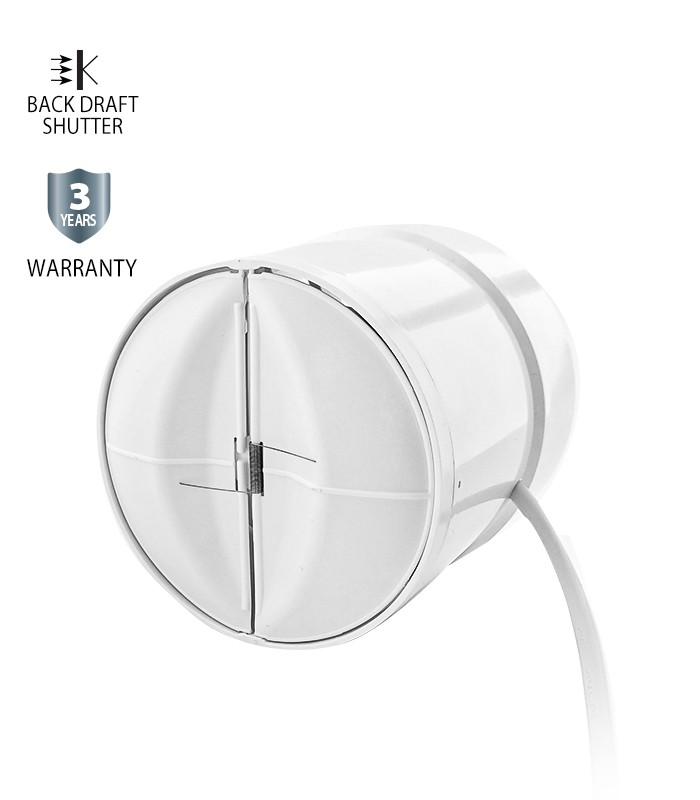

Plastic shutter: included
Power: 15 W
Airflow capacity: 220 m³/h
Motor speed: 2200 rpm
Noise level: 30 dB
New product
| POWER (W) | 15 |
| POWER FACTOR | 1 |
| DIMENSIONS (mm) | 129x129x108.5 |
| IP PROTECTION CLASS | IPX2 |
| OPERATION VOLTAGE (V) | 220-240V ~ 50/60Hz |
| ELECTRICAL PROTECTION | Class II |
| BODY MATERIAL | ABS |
| BODY COLOR | WHITE |
| TEMPERATURE (Ta) | -10℃ta+40℃ |
| GUARANTEE PERIOD (y) | 3 |
| CUT SIZE DIMENSIONS (mm) | / |
| PCS PER BOX | 40 |
| PRODUCT DEPTH (mm) | 108.5 |
| OUTBOX GROSS WEIGHT (Kg) | 22.5 |
| OUTBOX LENGHT (mm) | 560 |
| OUTBOX WIDHT (mm) | 285 |
| OUTBOX HEIGHT (mm) | 525 |
| OUTBOX VOLUME (m^3) | 0.08379 |
| UNIT GROSS WEIGHT (g)2 | 562.5 |
| EAN-13(Inbox) | 6977231354896 |
