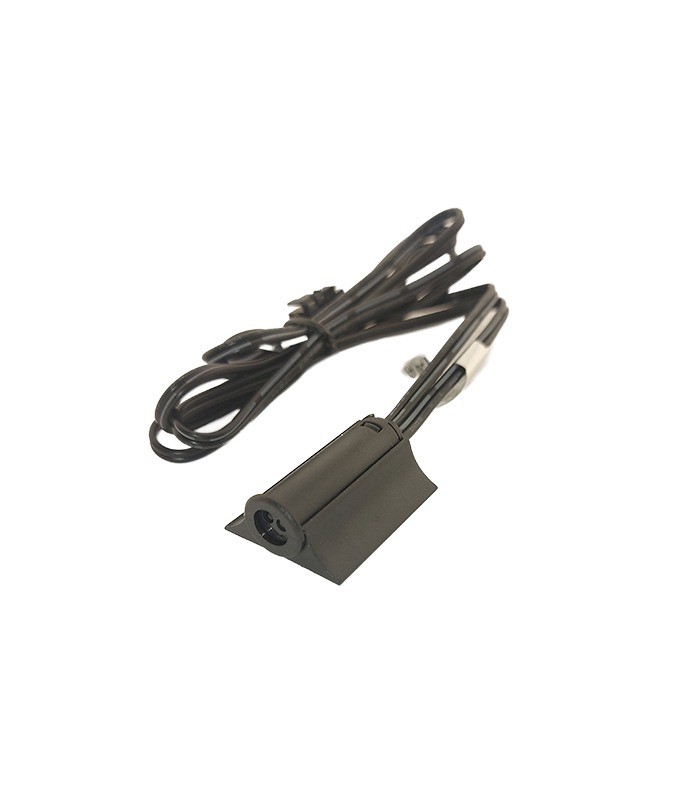

DOOR SENSOR DORIN 12-24VDC 5A CUT HOLE 10mm IP20 BLACK 6110170 VITO
Product Code:
6110170
DORIN is a black color door sensor which is suitable to use for indoor applicatiions and to be operated by 12-24VDC. The recessed installation cut hole is 10mm.
New product
| POWER (W) | Max.60W (12V) / Max.100W (24V) |
| IP PROTECTION CLASS | IP20 |
| OPERATION VOLTAGE (V) | 12-24V DC |
| ELECTRICAL PROTECTION | Class III |
| BODY MATERIAL | ABS |
| TEMPERATURE (Ta) | -20°CTa+40°C |
| GUARANTEE PERIOD (y) | 3 |
| SENSOR TYPE | PIR |
| DETECTION ANGLE OF SENSOR | 120° |
| DETECTION DISTANCE OF SENSOR (m) | 10cm |
| CUT SIZE DIMENSIONS (mm) | Φ10 |
| PCS PER BOX | 200 |
| Product Width (mm) | 32 |
| Product Height (mm) | 12 |
| DIMENSIONS (mm) | 32x12x10 |
| PRODUCT DEPTH (mm) | 10 |
| OUTBOX GROSS WEIGHT (Kg) | 8 |
| Outbox Length (mm) | 625 |
| Outbox Width (mm) | 280 |
| Outbox Height (mm) | 330 |
| Outbox Volume (m^3) | 0.0578 |
| UNIT GROSS WEIGHT (g)2 | 40.0 |
| EAN-13(Inbox) | 6977231354186 |
