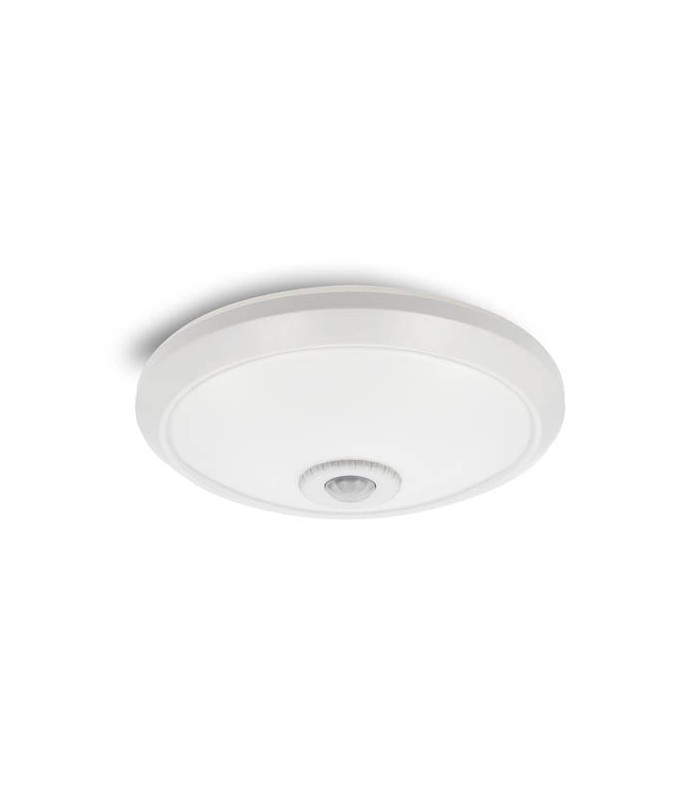

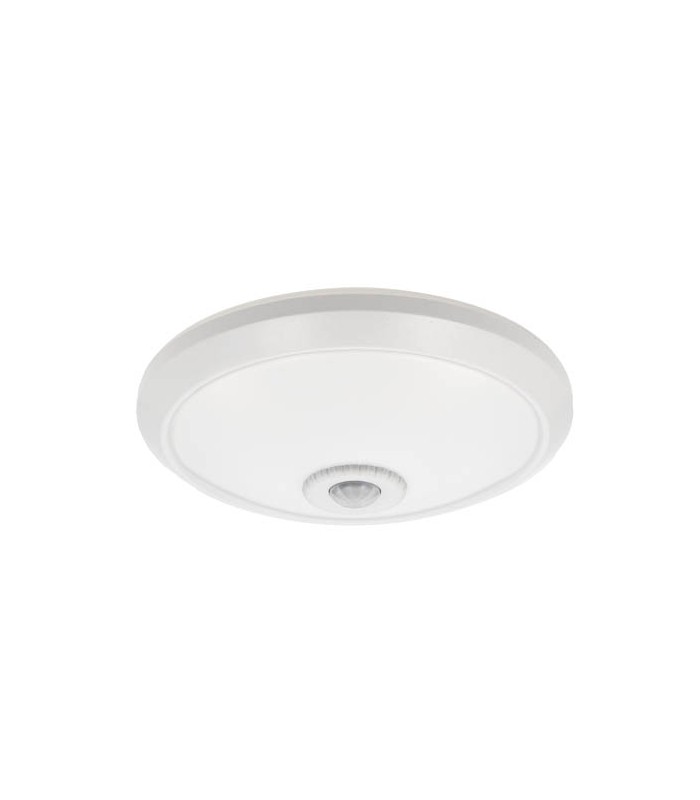

LED SURFACE MOUNTED PLAFON WITH PIR SENSOR DIANA Φ295x70mm 18W 6000K (COOL WHITE) 1575Lm WHITE 2025850 VITO
Family: DIANA
Product Code:
2025850
DIANA series LED CEILING LIGHTING with ABS body & Polycarbonate diffuser presents 1620Lm lighting performance and 25000Hours long lifetime.This 18W model includes 6000K (COOL WHITE) LED for 120° light beam-angle as desired lighting flexibility.It's ready to be operated with its easy installation and maintenance.DIANA fixture is a ceiling LED lighting with built in PIR sensor.
- Light sensitivity: <3 LUX (adjustable).
- Time delay: 10 sec - 5 min.
- Detection angle: 360°.
- Installation height: 1.8 - 2.5 m.
New product
| CCT (KELVIN) | 6000K (COOL WHITE) |
| POWER (W) | 18 |
| LUMINUS EFFICIENCY | 90 |
| LIGHT BEAM ANGLE | 120° |
| CRI | 80 |
| POWER FACTOR | 0.5 |
| DIMENSIONS (mm) | Ø295x70 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| SWITCH ON/OFF | 25000 |
| LIFETIME (H) | 25000 |
| LIGHT SENSITIVITY (lx) | 0-2000 |
| DIMMABLE | No |
| OPERATION VOLTAGE (V) | 220V-50/60Hz |
| ENERGY SAVING (%) | 85% |
| ELECTRICAL EFFICIENCY INDEX (EEI) | F |
| ELECTRICAL PROTECTION | Class II |
| BODY MATERIAL | ABS & Polycarbonate |
| DIFFUSER MATERIAL | Polycarbonate |
| BODY COLOR | WHITE |
| TEMPERATURE (Ta) | -20°CTa50°C |
| GUARANTEE PERIOD (y) | 2 |
| SENSOR TYPE | PIR |
| DETECTION ANGLE OF SENSOR | 360° |
| DETECTION DISTANCE OF SENSOR (m) | Max 10 |
| TIME DELAY OF SENSOR (s) | 10-300 |
| INSTALLATION HEIGHT OF SENSOR (m) | 1.8-2.5 |
| LUMINOUS FLUX (Lm) | 1620 |
| PCS PER BOX | 12 |
| PRODUCT HEIGHT (mm) | 70 |
| PRODUCT WIDTH (mm) | Ø295 |
| OUTBOX LENGHT (mm) | 615 |
| OUTBOX WIDHT (mm) | 445 |
| OUTBOX HEIGHT (mm) | 320 |
| OUTBOX VOLUME (m^3) | 0.0876 |
| UNIT GROSS WEIGHT (g)2 | 916.67 |
| EAN-13(Inbox) | 8698553606088 |
