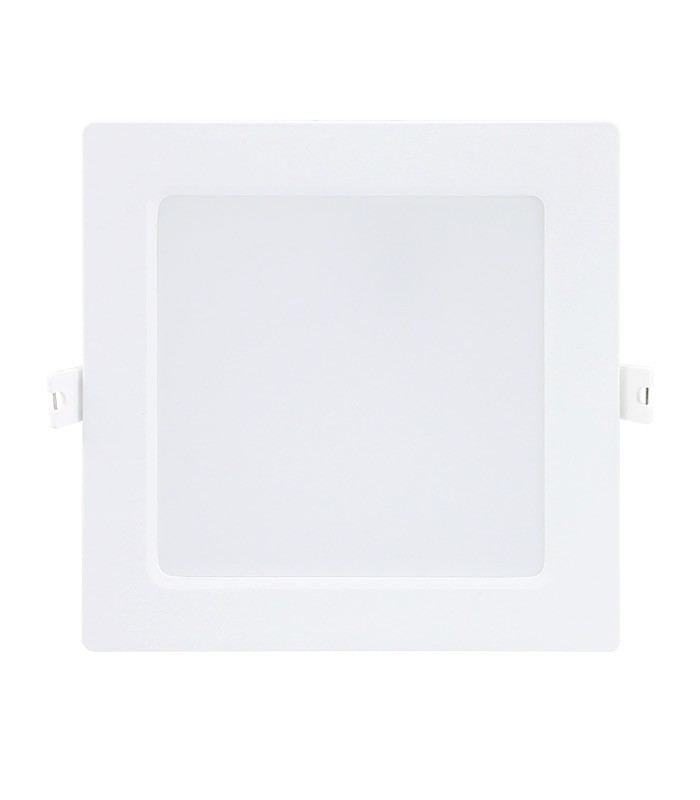

LINA-S 12W 6000K 155*155 SQUARE RECESSED LED PANEL 2027310 VITO
Family: LINA
Product Code:
2027310
LINA series is Backlighted LED panels with full plastic body and with 3y of warranty!
New product
Accessories
| CCT (KELVIN) | 6000K (COOL WHITE) |
| POWER (W) | 12 |
| LUMINUS EFFICIENCY | 110 |
| LIGHT BEAM ANGLE | 120° |
| CRI | 85 |
| POWER FACTOR | 0.6 |
| DIMENSIONS (mm) | 170.8x28.4x170.8 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| SWITCH ON/OFF | 30000 |
| LIFETIME (H) | 30000 |
| DIMMABLE | No |
| OPERATION VOLTAGE (V) | 220-240VAC 50/60Hz |
| ELECTRICAL EFFICIENCY INDEX (EEI) | E |
| BODY MATERIAL | PP |
| DIFFUSER MATERIAL | PP |
| BODY COLOR | WHITE |
| GUARANTEE PERIOD (y) | 3 |
| LUMINOUS FLUX (Lm) | 1320 |
| PCS PER BOX | 60 |
| Correlated Color Temperature (CCT) (K) | 6000K |
| Color Rendering Index (CRI) | 85 |
| Power Factor (0PF1) | 0.6 |
| Electrical Protection Class | Class II |
| Cut-Hole Dimension (mm) | 155x155mm |
| Ambient Temperature (Ta) | -20℃~+40℃ |
| PRODUCT HEIGHT (mm) | 28.4 |
| PRODUCT WIDTH (mm) | 170.8 |
| PRODUCT DEPTH (mm) | 170.8 |
| OUTBOX LENGHT (mm) | 635 |
| OUTBOX WIDHT (mm) | 425 |
| OUTBOX HEIGHT (mm) | 375 |
| OUTBOX VOLUME (m^3) | 0.1012 |
| UNIT GROSS WEIGHT (g)2 | 205 |
| EAN-13(Inbox) | 6970233830573 |
