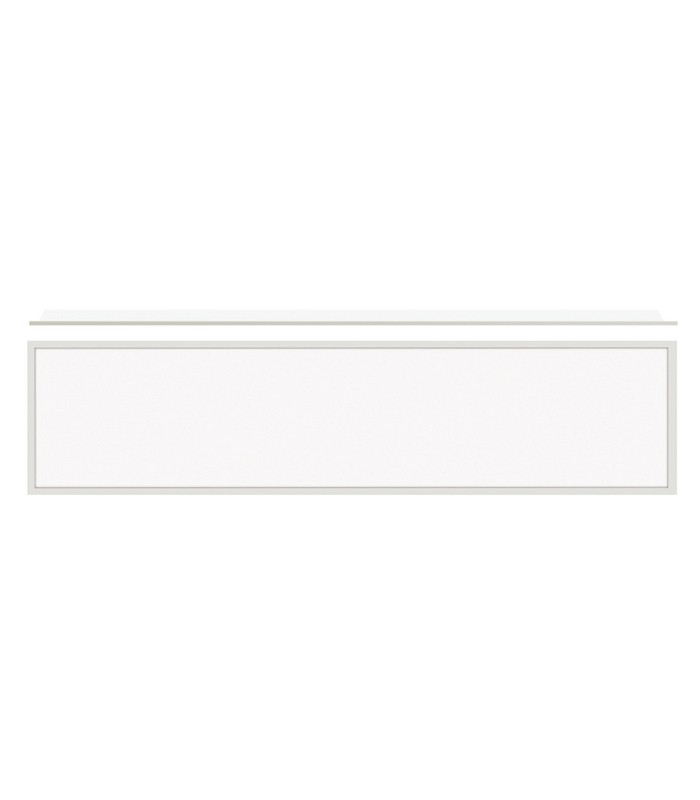

LED PANEL BACKLIGHT VENUS-BC 48W 4000K 1195X295MM RECESSED 2429920 VITO
Family: VENUS BC
Product Code:
2429920
The VENUS BC series consists of panel LED luminaires equipped with SAMSUNG LED sources in the backlight position. It is designed for recessed ceiling installation, but it can also be surface-mounted on the ceiling using the PANELFIX-S frame code 9901213. The body is made of an aluminum panel, electrostatically painted with a sandblasted finish in sand white. The diffuser is made of opal polystyrene with an anti-yellowing effect and a 120° beam angle. A standard driver is integrated.
Emergency lighting: EMUP 1 with 3-hour autonomy is available for VENUS-BC and is ordered separately.
New product
Accessories
| CCT (KELVIN) | 4000K (NATURAL WHITE) |
| POWER (W) | 48W |
| LUMINUS EFFICIENCY | 108 |
| LIGHT BEAM ANGLE | 150 |
| CRI | 83 |
| POWER FACTOR | 0.5 |
| FLICKER | No |
| IP PROTECTION CLASS | IP20 |
| SWITCH ON/OFF | 50000x |
| LIFETIME (H) | 50000h |
| DIMMABLE | No |
| OPERATION VOLTAGE (V) | 220-240V 50/60Hz |
| ELECTRICAL EFFICIENCY INDEX (EEI) | E |
| ELECTRICAL PROTECTION | Class II |
| BODY MATERIAL | Iron + Aluminum |
| DIFFUSER MATERIAL | PS |
| BODY COLOR | WHITE |
| TEMPERATURE (Ta) | —25-45℃ |
| GUARANTEE PERIOD (y) | 2 |
| CUT SIZE DIMENSIONS (mm) | 119.5×29.5 |
| LUMINOUS FLUX (Lm) | 5184 |
| PCS PER BOX | 10 |
| DIMENSIONS (mm) | 1195X295 |
| PRODUCT HEIGHT (mm) | 29.6 |
| PRODUCT WIDTH (mm) | 119.5 |
| PRODUCT DEPTH (mm) | 3.5 |
| UNIT GROSS WEIGHT (g) | 1.88 |
| EAN-13 (Inbox Barcode) | 6970233835394 |
