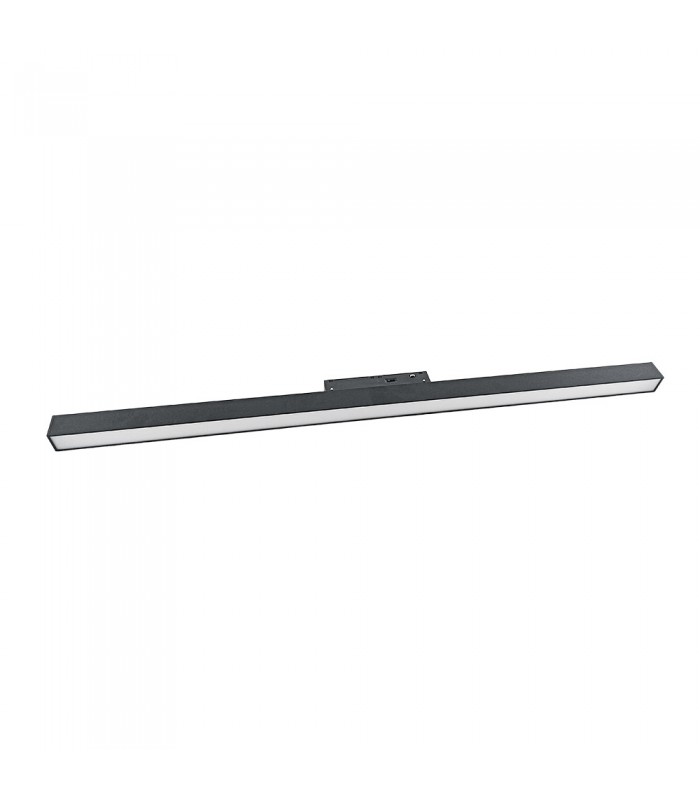

LED MAGNETIC TRACK LIGHT MAGNA-H S4 30W 3CCT (3000K/4000K/6000K) 2400Lm 120 degrees 900x22x25mm 48VDC BLACK 2102053 VITO New

LED MAGNETIC TRACK LIGHT MAGNA-H S4 30W 3CCT (3000K/4000K/6000K) 2400Lm 120 degrees 900x22x25mm 48VDC BLACK 2102053 VITO

Product Code: 2102053
MAGNA-HS4 is a versatile Magnetic Linear, single-phase LED track luminaire, with a 3×CCT DIP-switch for adjustable color temperature and flicker-free performance to ensure optimal eye comfort. This product line, MAGNA, offers multiple configurations differing in form and installation method, yet all share one defining characteristic: the high quality and reliability that distinguish our lighting solutions. Designed for use on the magnetic 2-line S20 track system, it is compatible with MAGNA PSMART power supply which can be controlled via bluetooth or wifi 2.4G. Each luminaire is equipped with a microprismatic diffuser delivering a precise 120° beam angle, flicker-free performance and ensuring UGR < 15, making it suitable for visual comfort–sensitive applications. The housing is made of aluminum, electrostatically painted in sand black.
New product


Technical Specs
CCT (KELVIN) 3CCT (3000K/4000K/6000K)
POWER (W) 30.0
LUMINUS EFFICIENCY 80
LIGHT BEAM ANGLE 120°
CRI 90
DIMENSIONS (mm) 900x22x25
IP PROTECTION CLASS IP20
LIFETIME (H) 25000
OPERATION VOLTAGE (V) 48V DC
ELECTRICAL EFFICIENCY INDEX (EEI) F
ELECTRICAL PROTECTION Class III
BODY MATERIAL Aluminum
TEMPERATURE (Ta) -20°CTa+40°C
GUARANTEE PERIOD (y) 2
PCS PER BOX 30
PRODUCT HEIGHT (mm) 25
PRODUCT WIDTH (mm) 22
PRODUCT DEPTH (mm) 900
SWITCH ON OFF 25000
OUTBOX GROSS WEIGHT (Kg) 15.8
OUTBOX VOLUME (m^3) 0.0515
UNIT GROSS WEIGHT (g)2 527.0
EAN-13(Inbox) 6977231357583
LUMINOUS FLUX () 2400
OUTBOX LENGTH (mm) 920
OUTBOX WIDTH (mm) 280
UNIT2 mm
OUTBOX HEOGHT Outbox (mm) 200
